Is it possible to learn inheritance, polymorphism,
event handling, and inner classes, all while dodging bullets and
executing precision attack maneuvers? A surprisingly addictive
teaching-tool-turned-game-craze called Robocode is about to make
this a reality for Java developers worldwide. Follow along as Sing
Li disarms Robocode and starts you on your way to building your
own customized lean, mean, fighting machine.
Robocode is an easy-to-use robotics battle simulator that runs
across all platforms supporting Java 2. You create a robot, put it
onto a battlefield, and let it battle to the bitter end against
opponent robots created by other developers. Robocode comes with a
set of pre-fab opponents to get you started, but once you outgrow
them, you can enter your creation against the world's best in one of
the leagues being formed worldwide.
Each Robocode participant creates his or her own robot using
elements of the Java language, enabling a range of developers --
from rank beginners to advanced hackers -- to participate in the
fun. Beginning Java developers can learn the basics: calling API
code, reading Javadocs, inheritance, inner classes, event handling,
and the like. Advanced developers can tune their programming skill
in a global challenge to build the best-of-breed software robot. In
this article, we will introduce Robocode and start you on your way
to conquering the world by building your very first Robocode robot.
We will also take a peek at the fascinating "behind the scenes"
machinery that makes Robocode tick.
Downloading and installing
Robocode
Robocode is the brainchild of Mathew Nelson, a software engineer
in the Advanced Technology, Internet division at IBM. First, head to
the Robocode
page. Here, you will find the latest executables of the Robocode
system. Once you have downloaded the distribution, which is in a
self-contained installation file, you can use the following command
to get the package installed on your system (assuming you have a
Java VM (JDK 1.3.x) pre-installed on your machine, of
course):
java -jar robocode-setup.jar
|
During installation, Robocode will ask you if you'd like to use
this external Java VM for robot compilations. The other alternative
is the Jikes compiler that is supplied as part of the Robocode
distribution.
After your installation, you can start the Robocode system from
either the shell script (robocode.sh), batch file (robocode.bat), or
icon on the desktop. At this point, the battlefield will appear.
From here, you can invoke the Robot Editor and compiler using the
menu.
Components of the Robocode
system
When you activate Robocode, you will see two interrelated GUI
windows, which form Robocode's IDE:
- The battlefield
- The Robot Editor

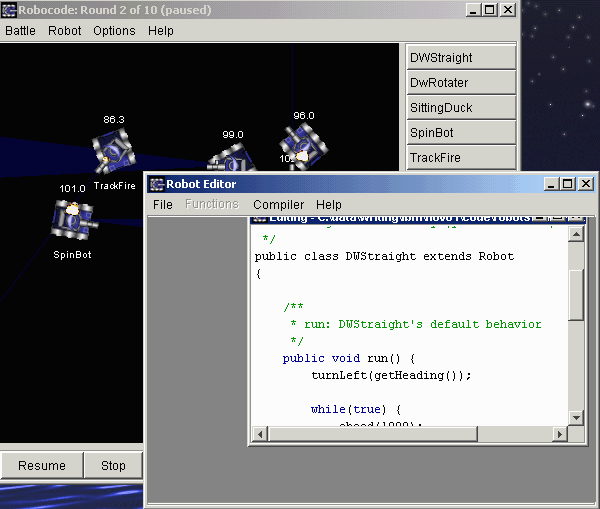

Figure 1 shows the battlefield and the Robot Editor in
action.
Figure 1. The Robocode
IDE
The battlefield is where the battle between the robots plays
itself out. It houses the main simulation engine and allows you to
create, save, and open new or existing battles. You can pause and
resume the battle, terminate the battle, destroy any individual
robot, or get the statistics of any robot using the controls
available in the arena. Furthermore, you can activate the Robot
Editor from this screen.
The Robot Editor is a customized text editor for editing the Java
source files that make up a robot. It integrates both the Java
compiler (for compiling robot code) and the customized Robot
packager in its menu. Any robot created with the Robot Editor and
successfully compiled is in a ready-to-deploy location for the
battlefield.
A robot in Robocode consists of one or more Java classes. These
classes can be archived into a JAR package. The latest version of
Robocode provides a "Robot Packager" that can be activated from the
battlefield GUI window, for just this purpose.
The anatomy of a Robocode
robot
At the time of this writing, a Robocode robot is a graphical
tank. Figure 2 illustrates a typical Robocode robot.
Figure 2. Anatomy of a Robocode
robot
Note that the robot has a rotating gun, and on top of the gun is
a rotating radar. The robot vehicle, the gun, and the radar can all
rotate independently: at any moment in time, the robot's vehicle,
the gun, and radar can be turned in different directions. By
default, these items are aligned, facing the direction of the
vehicle movement.
Robot commands
The set of commands for a Robocode robot are all documented in
the Javadoc of the Robocode API. You will find them as public
methods of the robocode.Robot class. In this section,
we'll cover each of the available commands, by category.
Moving the robot, gun, and
radar
Let's begin with the basic commands to move the robot and its
accoutrements:
turnRight(double degree) and
turnLeft(double degree) turn the robot by a specified
degree.
ahead(double distance) and back(double
distance) move the robot by the specified pixel distance;
these two methods are completed if the robot hits a wall or
another robot.
turnGunRight(double degree) and
turnGunLeft(double degree) turn the gun, independent
of the vehicle's direction.
turnRadarRight(double degree) and
turnRadarLeft(double degree) turn the radar on top of
the gun, independent of the gun's direction (and the vehicle's
direction).
None of these commands will return control to the program until
they are completed. Furthermore, when the vehicle is turned, the
direction of the gun (and radar) will also move, unless indicate
differently by calling the following methods:
setAdjustGunForRobotTurn(boolean flag): If the
flag is set to true, the gun will remain in the same direction
while the vehicle turns.
setAdjustRadarForRobotTurn(boolean flag): If the
flag is set to true, the radar will remain in the same direction
while the vehicle (and the gun) turns.
setAdjustRadarForGunTurn(boolean flag): If the
flag is set to true, the radar will remain in the same direction
while the gun turns. It will also act as if
setAdjustRadarForRobotTurn(true) has been called.
Obtaining information about the
robot
Many methods exist for getting information about the robot. Here
is a short list of frequently used method calls:
getX() and getY() get the current
coordinate of the robot.
getHeading(), getGunHeading(), and
getRadarHeading() get the current heading of the
vehicle, gun, or radar in degrees.
getBattleFieldWidth() and
getBattleFieldHeight() get the dimension of the
battlefield for the current round.
Firing commands
Once you have mastered how to move the robot and its associated
weaponry, it's a good time to consider the tasks of firing and
controlling damage. Each robot starts out with a default "energy
level," and is considered destroyed when its energy level falls to
zero. When firing, the robot can use up to three units of energy.
The more energy supplied to the bullet, the more damage it will
inflict on the target robot. fire(double power) and
fireBullet(double power) are used to fire a bullet with
the specified energy (fire power). The fireBullet()
version of the call returns a reference to a
robocode.Bullet object that can be used in advanced
robots.
Events
Whenever the robot moves or turns, the radar is always active,
and if it detects any robots within its range, an event is
triggered. As the robot creator, you can choose to handle various
events that can occur during the battle. The basic
Robot class has default handlers for all of these
events. However, you can override any of these "do nothing" default
handlers and implement your own custom actions. Here are some of the
more frequently used events:
ScannedRobotEvent. Handle the
ScannedRobotEvent by overriding the
onScannedRobot() method; this method is called when
the radar detects a robot.
HitByBulletEvent. Handle the
HitByBulletEvent by overriding the
onHitByBullet() method; this method is called when
the robot is hit by a bullet.
HitRobotEvent. Handle the
HitRobotEvent by overriding the
onHitRobot() method; this method is called when your
robot hits another robot.
HitWallEvent. Handle the
HitWallEvent by overriding the
onHitWall() method; this method is called when your
robot hits a wall.
That's all we need to know to create some pretty complex robots.
You can find the rest of the Robocode API in the Javadoc, which can
be accessed from either the battlefield's help menu or the Robot
Editor's help menu.
Now it's time to put our knowledge to use.
Creating a robot
To create a new robot, start the Robot Editor and select
File->New->Robot. You will be prompted
for the name of the robot, which will become the Java class name.
Enter DWStraight at this prompt. Next, you will be prompted
for a unique initial, which will be used for the name of the package
that the robot (and potentially its associated Java file) will
reside in. Enter dw at this prompt.
The Robot Editor will display the Java code that you need to
write to control the robot. Listing 1 is an example of the code that
you will see:
Listing 1.
Robocode-generated Robot code
package dw;
import robocode.*;
/**
* DWStraight - a robot by (developerWorks)
*/
public class DWStraight extends Robot
{
... // <<Area 1>>
/**
* run: DWStraight's default behavior
*/
public void run() {
... // <<Area 2>>
while(true) {
... // <<Area 3>>
}
}
... // <<Area 4>>
public void onScannedRobot(ScannedRobotEvent e) {
fire(1);
}
}
|
The highlighted areas are those places where we can add code to
control the robot:
Area 1
In this space we can declare class scope
variables and set their value. They will be available within the
robot's run() method, as well as any other helper
methods that you may create.
Area 2
The run() method is called by the
battle manager to start the robot's life. It typically consists of
two areas (designated Area 2 and Area 3 in Listing 1) where you can
add code. Area 2 is where you will place code that will run only
once per robot instance. It is often used to get the robot into a
pre-determined state before starting repetitive action.
Area 3
This is the second part of a typical
run() method implementation. Here, within an endless
while loop, we'll program the repetitive action that a
robot may be involved in.
Area 4
This is the area where you add helper methods
for the robot to use within its run() logic. It's also
where you add any event handlers that you wish to override. For
example, the code in Listing 1 handles the ScannedRobot
event and simply fires directly at the robot whenever one is
detected by the radar.
For our first robot, DWStraight, we'll update the code as shown
(in red) in Listing 2.
Listing 2.
DWStraight robot code additions
package dw;
import robocode.*;
public class DWStraight extends Robot
{
public void run() {
turnLeft(getHeading());
while(true) {
ahead(1000);
turnRight(90);
}
}
public void onScannedRobot(ScannedRobotEvent e) {
fire(1);
}
public void onHitByBullet(HitByBulletEvent e) {
turnLeft(180);
}
}
|
Here's what this first robot will do, area by area:
Area 1
We don't specify any class scope variables in
this robot.
Area 2
To get the robot into a known state, we turn it
so that it faces 0 degrees using
turnLeft(getHeading()).
Area 3
In this repetitive section, we move the robot
forward as far as it will go using ahead(1000). It will
stop when it hits a wall or robot. Then we turn right using
turnRight(90). As this is repeated, the robot will
basically trace out the walls in a clockwise direction.
Area 4
Here, in addition to handling the
auto-generated ScannedRobot event and firing at the
robot that is found directly, we also detect the
HitByBullet event and turn 180 degrees (going clockwise
and counterclockwise, alternately) when we get hit.
Compiling and testing the
robot
From the Robot Editor menu, select
Compiler->Compile to compile your robot code. We
are now ready to try our first battle. Switch back to the
battlefield and select menu Battle->New to display
a dialog similar to the one in Figure 3.

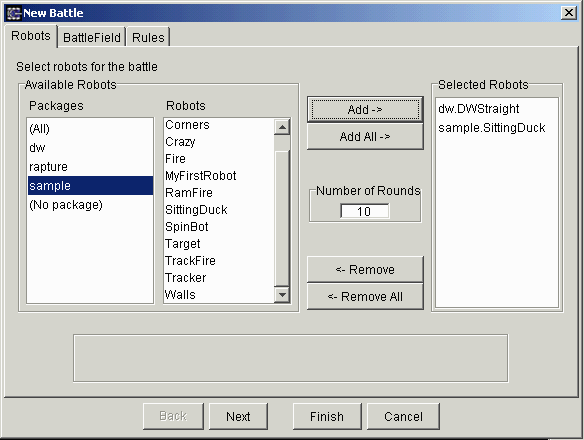

Figure 3. The New Battle dialog
Add our robot, dw.DWStraight to the battle, then add an opponent
robot, such as sample.SittingDuck. Click Finish, and the
battle will begin. Admittedly, doing battle with SittingDuck is not
too exciting, but you get to see what the DWStraight robot does by
default. Experiment with other robots in the sample collection, and
see how DWStraight fares against them.
When you're ready to examine the coding of another robot, check
out the dw.DWRotater robot code that is supplied with the code
distribution in Resources.
This robot will, by default:
- Move to the center of the battlefield
- Keep spinning its gun until it detects a robot
- Fire slightly ahead of the detected robot, trying different
angles each time
- Move rapidly back and forth whenever it is hit by another
robot.
The code is straightforward and we will not analyze it here, but
I encourage you to try it out. The sample package included with
Robocode provides code for many other robots, as well.
Additional robot support
classes
As you become more competent in robot design, the body of code
that you can include with the robot can increase substantially. A
modular way to handle the code is to decompose it into separate Java
classes and then bundle them into a single package (JAR file), using
the packager, to include as part of your robot distribution.
Robocode will automatically find robot classes within packages
placed in its robots directory.
Other Robot
subclasses
Anyone can create subclasses of Robot and add new
functionalities that can be used to build robots. Robocode supplies
a subclass of Robot, called AdvancedRobot,
which enables asynchronous API calls. A description of the
AdvancedRobot class is beyond the scope of this
article, but I encourage you to experiment with this advanced class
when you are comfortable with the operation of the basic
Robot class.
 |
The motivation
behind Robocode design
I caught up with Mathew Nelson, Robocode's creator,
and asked him about his original motivation for creating
Robocode. Here's what Mat had to share: "Part of the
motivation for writing Robocode was to prove to the
world that the statements like 'Java is slow' and 'You
can't write games in Java' are no longer true. I think I
did it." | |
The architecture of a battle
simulator
A look behind the scenes at Robocode reveals a sophisticated
simulation engine that is both high performance (in order to render
the battle at realistic speed) and flexible (enabling the creation
of complex robotics logic without getting in the way). A special
thanks to Robocode creator Mathew Nelson for graciously providing
the inside information on the architecture of the simulation
engine.
A design that leverages the
Java platform
This simulation engine, shown in Figure 4, leverages the
non-preemptive threading that most modern Java VMs offer, and
couples it with the rendering capabilities provided by the JDK GUI
and 2D graphics libraries.

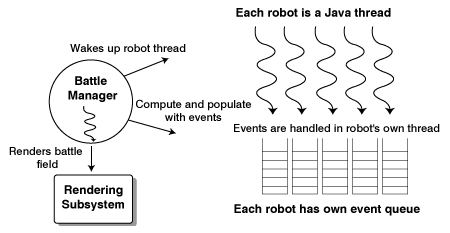

Figure 4.
Robocode simulation engine architecture
Notice that each robot being simulated is on its own Java thread,
leveraging the VM's native thread mapping wherever applicable. A
battle manager thread is the controller of the system: it
orchestrates the simulation and drives the graphical rendering
subsystem. The graphical rendering subsystem itself is based on Java
2D and AWT.
Loose thread
coupling
To alleviate potential problems with shared resources (and thus
potentially deadlocking or choking the simulation engine), a very
loose coupling is required between the battle manager thread and the
robot threads. To implement this loose coupling, each robot thread
is given its own event queue. The events for each robot are then
fetched and processed in the robot's very own thread. This
per-thread queuing effectively eliminates any potential contention
between battle manager thread and robot thread, or between robot
threads themselves.
Robocode
internals
You can view the Robocode simulator engine as a simulator program
that takes a set of plug-ins (custom robots) during run time; this
set of plug-ins can make use of the API supplied (the
robocode.Robot class's methods). Physically, each robot
is an independent Java thread, and the run() method
contains the logic that will be executed on the thread.
At any time, a robot thread can call an API supplied by its
parent, the robocoode.Robot class. This will typically
block the robot thread via an Object.wait() call.
The battle manager
thread
A battle manager thread manages the robots, bullets, and
rendering on the battlefield. The simulation "clock" is marked by
the number of frames rendered on the battlefield. The actual frame
rate is adjustable by the user.
In a typical turn, the battle manager thread wakes up each robot
thread, and then waits for the robot to complete its turn (that is,
calling a blocking API again). This wait interval is typically tens
of milliseconds, and even the most complex robot tends to use only 1
or 2 milliseconds for strategy and computation with today's typical
system speed.
Here is the pseudo-code for the logic that the battle manager
thread performs:
Listing 3. Pseudo-code
logic for battle manager
while (round is not over) do
call the rendering subsystem to draw robots, bullets, explosions
for each robot do
wake up the robot
wait for it to make a blocking call, up to a max time interval
end for
clear all robot event queue
move bullets, and generate event into robots' event queue if applicable
move robots, and generate event into robots' event queue if applicable
do battle housekeeping and generate event into robots' event queue
if applicable
delay for frame rate if necessary
end do
|
Note that in the inside for loop, the battle manager thread will
not wait beyond the maximum time interval. It will go on with the
battle if the robot thread does not call a blocking API in time
(typically due to some application logic error or endless loop). A
SkippedTurnEvent is generated into a robot's event
queue to notify advanced robots.
Replaceable rendering
subsystem
The rendering subsystem in the current implementation is simply
an AWT and Java 2D thread that takes commands from the battle
manager and renders the battlefield. It is adequately decoupled from
the rest of the system. It is foreseeable that it can be replaced in
a future revision (with, for example, a 3-D renderer). In the
current implementation, rendering is disabled whenever the Robocode
application is minimized, allowing the simulation to proceed at a
faster rate.
The future of
Robocode
Mathew Nelson is in a tight feedback loop with the Robocode user
community via a discussion group hosted at the alphaWorks Robocode
site (see Resources.
Much of the feedback is incorporated into the actual code. Some
upcoming enhancements Mathew has planned are:
- Custom battlefield map with different object and obstacles
- Team-based battles
- Integrated support for tournaments or leagues
- User-selectable style of tank body/gun/radar/weapon
The unstoppable Robocode
momentum
For a project that debuted as recently as July 12, 2001,
Robocode's climb to fame is nothing short of phenomenal. While the
latest version available has yet to hit 1.0 (at the time of writing
it is version 0.98.2), it is already becoming a very popular pastime
on university campuses and corporate computers throughout the world.
Robocode leagues (or roboleagues), in which people pit their
custom creations against each other over the Internet, are springing
up fast. University professors are tapping Robocode's educational
properties and have incorporated it into their computer science
curriculum. Robocode user groups, discussion list, FAQs, tutorials,
and Webrings can be found throughout the Internet.
Evidently, Robocode has filled a void in the popular gaming and
educational arena -- supplying a simple, fun, non-intimidating, yet
competitive way for students and midnight engineers to unleash their
creative energy and potentially fulfill their fantasy to conquer the
world.
Download
| Name |
Size |
Download method |
| j-robocode.zip |
| FTP |
Resources
About the author
Rate this
page
|
.gif){kind=small}
